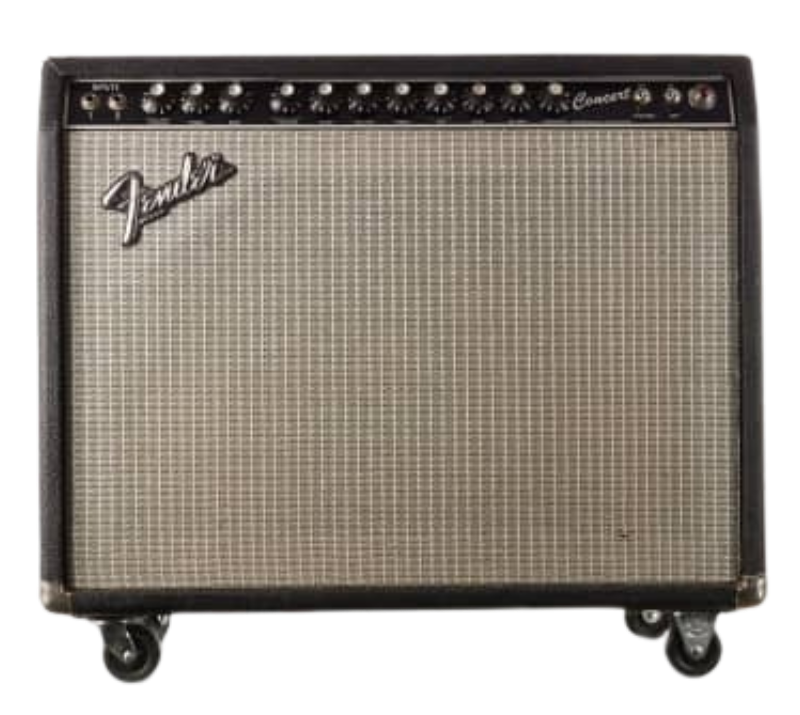

Fender Concert 1987 Amplifier

Fender Concert II Rivera era 1983 Analogic vintage guitar amp 1988.
Rivera era “Concerts” were built from 1982-1987, not to be confused with the later, non Rivera “Concert Amp”, circa 1993. The amp is rated at 60 watts RMS. It is a hand wired, point to point amp.

It has two foot switchable channels (with separate EQ.) and foot switchable reverb. The tube compliment is: 2, 6L6GCs, 5 12AX7s and two 12AT7s. Layout of front; It has high and low sensitivity inputs. The clean channel has volume with bright boost, treble, and bass. (The reverb and presence also work in clean mode.)

The lead channel has volume (with pull channel switch, when not using the foot switch), gain, master, treble, mid (with pull mid boost that adds a lot of boost), bass, reverb and presence. Then there is a standby switch and an on/off switch. The reverb is via a tube driven tank. Layout of rear, AC outlet, ground switch, main speaker jack (8 ohm), external speaker jack, line recording out, return level, effects return jack, effects send jack, send level, reverb tank out, reverb tank in, jack for channel foot pedal, jack for reverb foot pedal, hum balance pot.

Classic old Fender sound. Serviced and ready to go.
